BP 2171QC | Boston Pneumatic

BP 2171QC

Rate

Top-Content

Composite Motor Housing
Twin Hammer Clutch Mechanism
Push Button One Hand Forward / Reverse
Available Optional Exhaust Hose Assembly
Handle Exhaust
360° Swivel Air Inlet
Lightweight
Low Noise 83 dB(A)

Vertical Tabs

Specification

MAX Power

1500 ft-lb (2,034 Nm) MAX reverse torque and weighing less than 8 lbs, that's best power-to-weight ratio in it's class
The original, perfected twin-hammer mechanism utilizes proprietary advanced metallurgy
Optimized air flow ensures maximum performance

MAX Control

Feather touch trigger enables impressive control
One-hand forward/reverse for easy operation

MAX Reliability

Free two-year limited warranty with tool registration

Document

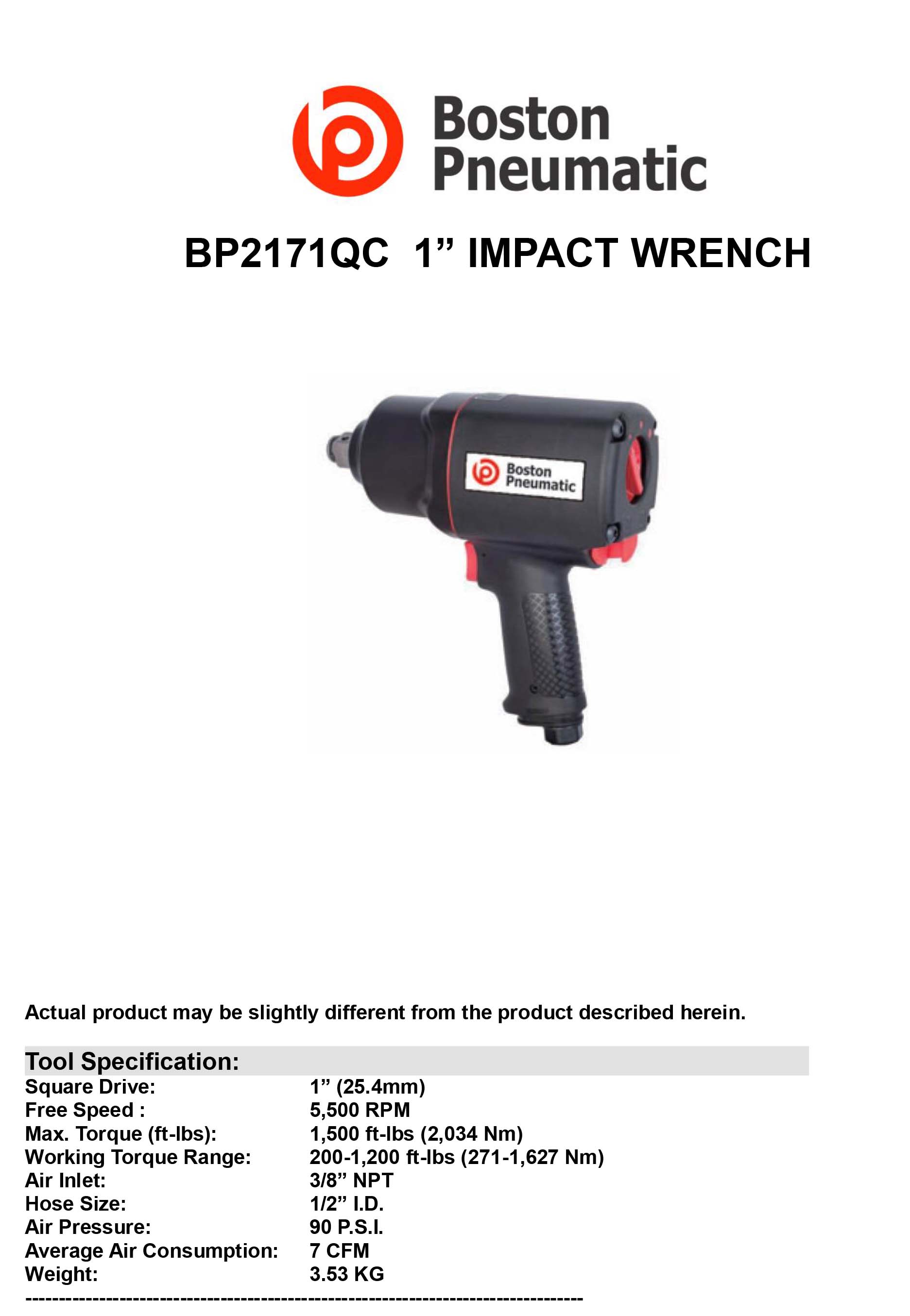

Technical description

Model	BP 2171QC
Handle type	Pistol Grip
Square drive	1"
Working Torque Range (Nm)	200-1,200 ft.lbs	271-1,627 Nm
Maximum Torque (reverse)	1,500 ft.lbs	2,034 Nm
Free speed	5,500 rpm
Net weight	7.78 lbs	3.53 kg
Length	9"	228 mm
Average air consumption	7 cfm	198 L/min
Air inlet thread size	3/8 "
Noise level	83 db(A)
Clutch type	Twin Hammer
