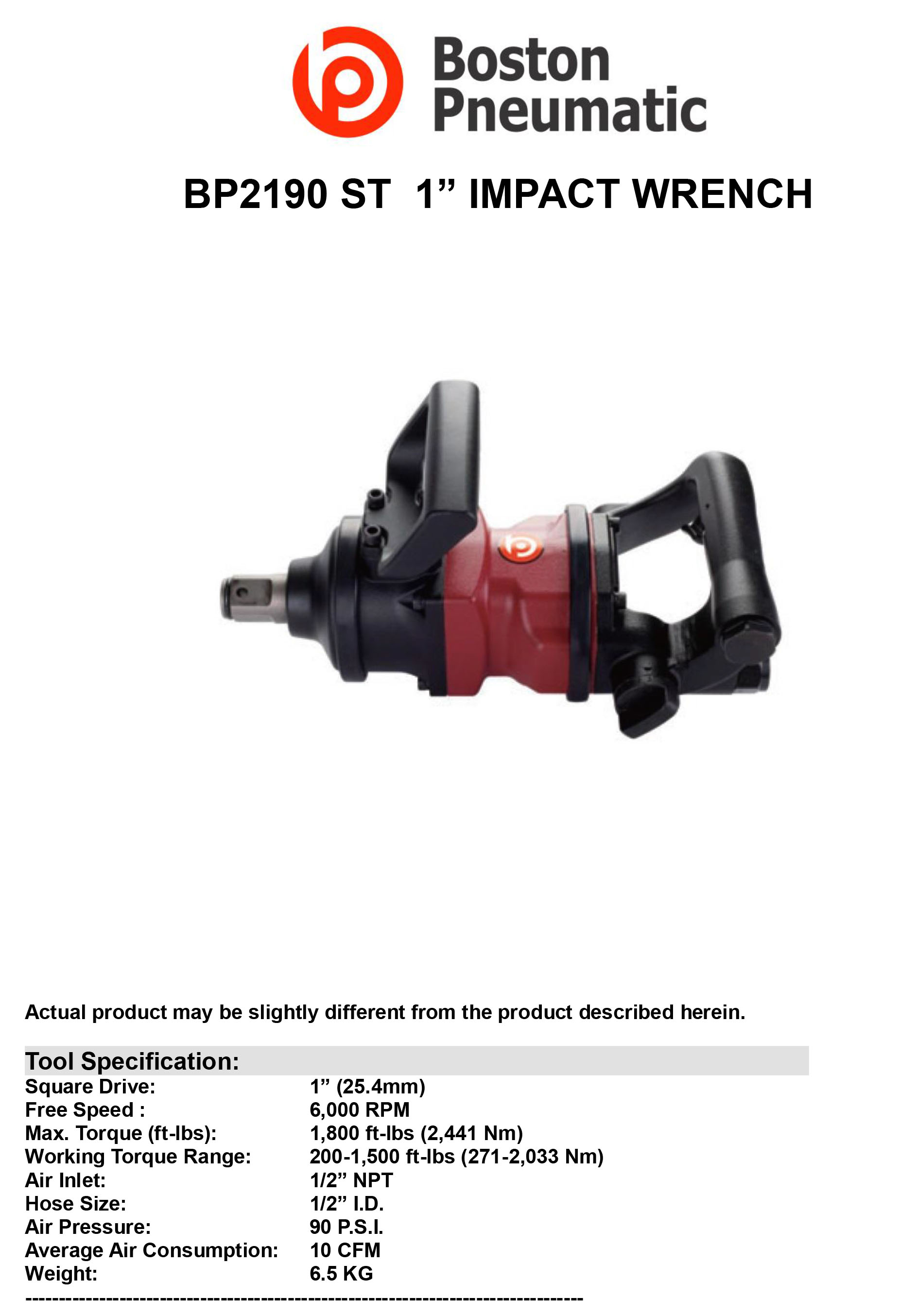

BP 2190ST | Boston Pneumatic

BP 2190ST

Rate

Top-Content

Side Support Handle for Better control when Operate
Handle with Inside Trigger
with Steel Ring to Retain the Sockets
Twin Hammer Clutch / Pinless Clutch Mechanism
Square drive 1"
Working Torque Range (Nm) 200-1,500 ft.lbs (271-2,033Nm)

Vertical Tabs

Specification

MAX Power

1500 ft-lb(2,033 Nm) MAX reverse torque and weighing less than 10 lb, that's best power-to-weight ratio in it's class
The original, perfected twin-hammer mechanism utilizes proprietary advanced metallurgy
Optimized air flow ensures maximum performance

MAX Control

Feather touch trigger enables impressive control
One-hand forward/reverse for easy operation

MAX Reliability

Free one-year limited warranty with tool registration

Document

Technical description

Model	BP 2190ST
Handle type	Cranck Back Handle
Square drive	1"
Working Torque Range (Nm)	200-1,500 ft.lbs	271-2,033
Maximum Torque (reverse)	1,800 ft.lbs	2,441 Nm
Free speed	6,000 rpm
Net weight	14.3 lb	6.5 kg
Length	12.8"	324 mm
Average air consumption	10 cfm	282 L/min
Air inlet thread size	1/2 "
Noise level	96 db(A)
Clutch type	Twin Hammer
