BP 3940L8
Rate
1
2
3
4
5
Total votes: 599
Top-Content
Side Support Handle for Better control when Operate
Handle with Inside Trigger
with Steel Ring to Retain the Sockets
Twin Hammer Clutch / Pinless Clutch Mechanism
Vertical Tabs
Specification
MAX Power
2,500 ft-lb(3,390 Nm) MAX reverse torque and weighing less than 25 lb, that's best power-to-weight ratio in it's class
The original, perfected twin-hammer mechanism utilizes proprietary advanced metallurgy
Hard coat anodized end plate stands up to the toughest jobs
Optimized air flow ensures maximum performance
MAX Control
Feather touch trigger enables impressive control
One-hand forward/reverse for easy operation
MAX Reliability
Free two-year limited warranty with tool registration
Document

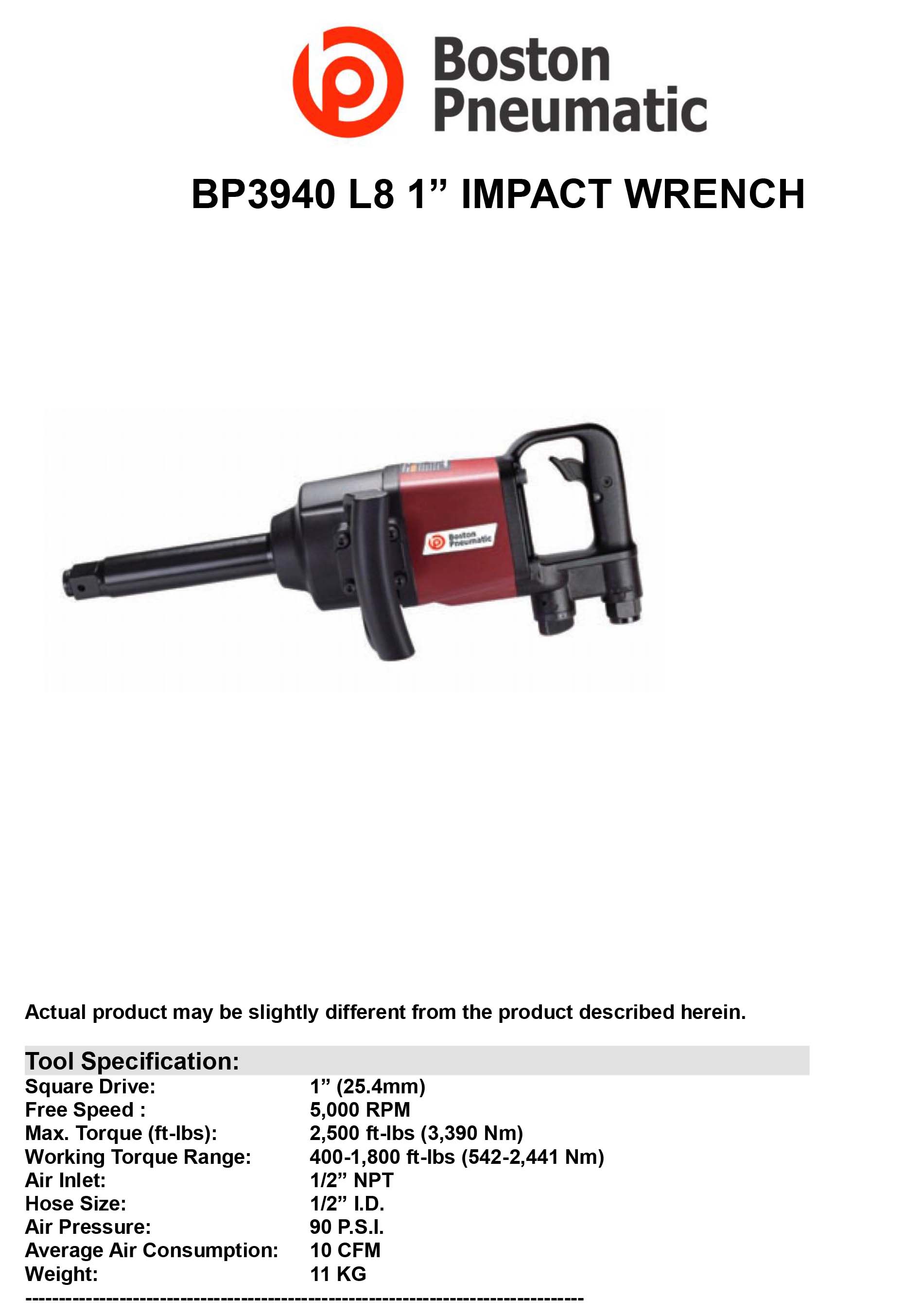

BP3940L8.pdf
Technical description
Model
BP 3940L8
Handle type
Pistol Grip
Square drive
1"
Working Torque Range (Nm)
400-1800 ft.lbs
542-2,441 Nm
Maximum Torque (reverse)
2500 ft.lbs
3,390 Nm
Free speed
5,000 rpm
Net weight
24.3 lbs
11 kg
Length
20.7"
527 mm
Average air consumption
10 cfm
282 L/min
Air inlet thread size
1"
Noise level
83 db(A)
Clutch type
Twin Hammer
